Ship's Design

ARA OCEAN provides “Total Solution” to satisfy customer.

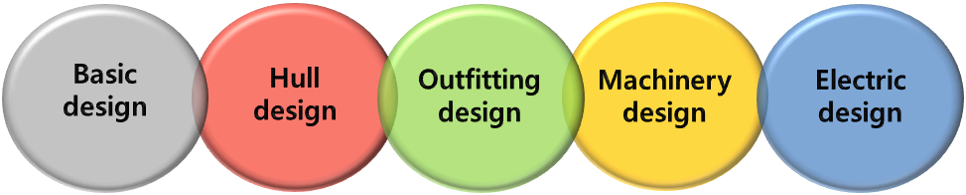

Conceptual & Basic Design
  • Building Specification
  • General Arrangement
  • Structural Key plan Drawing
  • System Diagram
  • Block Diagram for Electrical system
  • Target of Performance
  • Material List (Including equipment)
  • Price Estimation
Detail Design
  • Review of Basic Design Package
  • Weight Control

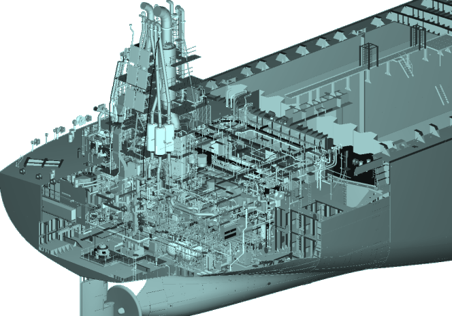

  • Detailed Arrangement Drawing for outfitting
  • System optimization
  • Procedure of Test & Trial
Production design
  • Block Division (Incl. Erection N.W)
  • Production Technology (D.A.P, S.A.P, W.S.D)
  • Cutting Plan & Drawing
  • Block Assembly Drawing
